Vacheron Constantin spent seven years developing new Calibre 2550. It’s just 2.4mm thick, delivers 80 hours of power and lives inside a platinum Overseas self-winding ultra-thin—for Tatler GMT, that’s seven years well spent
The first thing to understand about Calibre 2550 is that it should not exist. A self-winding movement 2.4mm thick that delivers 80 hours of power reserve has no business being fitted to a watch at all, let alone a sports watch. And yet, Vacheron Constantin has spent seven years making sure that can happen. The result is the Overseas Self-winding Ultra-Thin, the thinnest Overseas the manufacture has produced yet.
The Calibre 2550 is, by Vacheron Constantin’s own framing, a successor to the Calibre 1120, the legendary self-winding movement from 1968 that measured 2.45mm thick. This new movement measures 30.6mm in diameter and 2.4mm in height, and it achieves its remarkable autonomy through an architecture that required a wholesale rethink of how its components relate to one another. Three elements do the heavy lifting: a bi-directional micro-rotor, a suspended double barrel, and a compact single-level gear train.
Start with the micro-rotor, which is machined from 950 platinum. It measures 15.5mm in diameter and is integrated directly into the mainplate rather than sitting above it as a conventional rotor would. That single decision eliminates an entire layer of movement height; without it, the 2.4mm figure simply would not be achievable.
The double barrel is where things get clever. Two barrels are stacked one above the other in an inverted orientation, pivoting on a single post fixed to the barrel bridge. Because of how torque flows between them—with winding feeding into the upper barrel and energy delivered from the lower barrel to the finishing gear—the ratchet wheel becomes redundant and so has been removed entirely. One of the barrel covers has been eliminated; both aforementioned absences contribute to the slimness.The result of all this is an 80-hour power reserve.

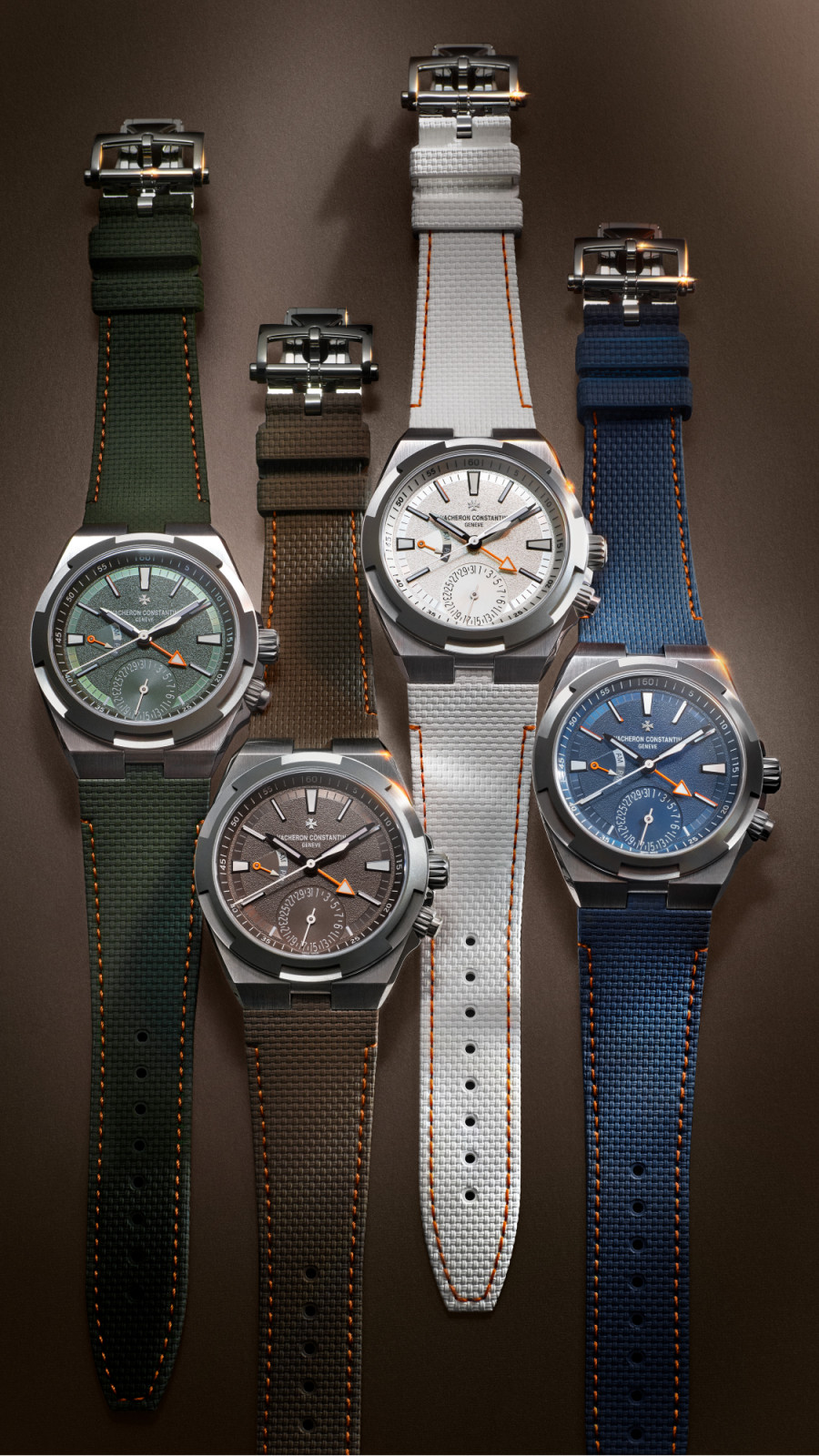

Above The four Vacheron Constantin Overseas Dual Time Cardinal Points (Photo: courtesy of Vacheron Constantin)
The four Vacheron Constantin Overseas Dual Time Cardinal Points (Photo: courtesy of Vacheron Constantin)
1 / 1
The decision to design a singlelevel gear train, meanwhile, required a complete redesign of its layout within the restricted space available. It uses five wheels, two of which run on ball bearings, the balance beats at 3Hz, or 21,600 vibrations per hour, and the complete calibre contains 153 components and 25 jewels. Finishing is executed in the traditional manner: circular graining on the mainplate, Geneva stripes on the bevelled bridges, a snailed finish on the upper barrel drum and sunburst finishing on the wheels.
The 39.5mm-diameter, 7.35mm-thick watch case is in 950 platinum, but not the standard industry alloy—Vacheron Constantin specifies a composition containing 5 per cent copper and gallium that undergoes thermal hardening, a process that yields an alloy 2.7 times more resistant to scratches and shocks than the 950 platinum most watchmakers use. In a sports watch context, that matters considerably. The bracelet is also in 950 platinum, and features the half Maltese cross-shaped links that define the Overseas aesthetic, secured by an 18-karat white gold triple-blade folding clasp. Water resistance is rated to approximately 50 metres.

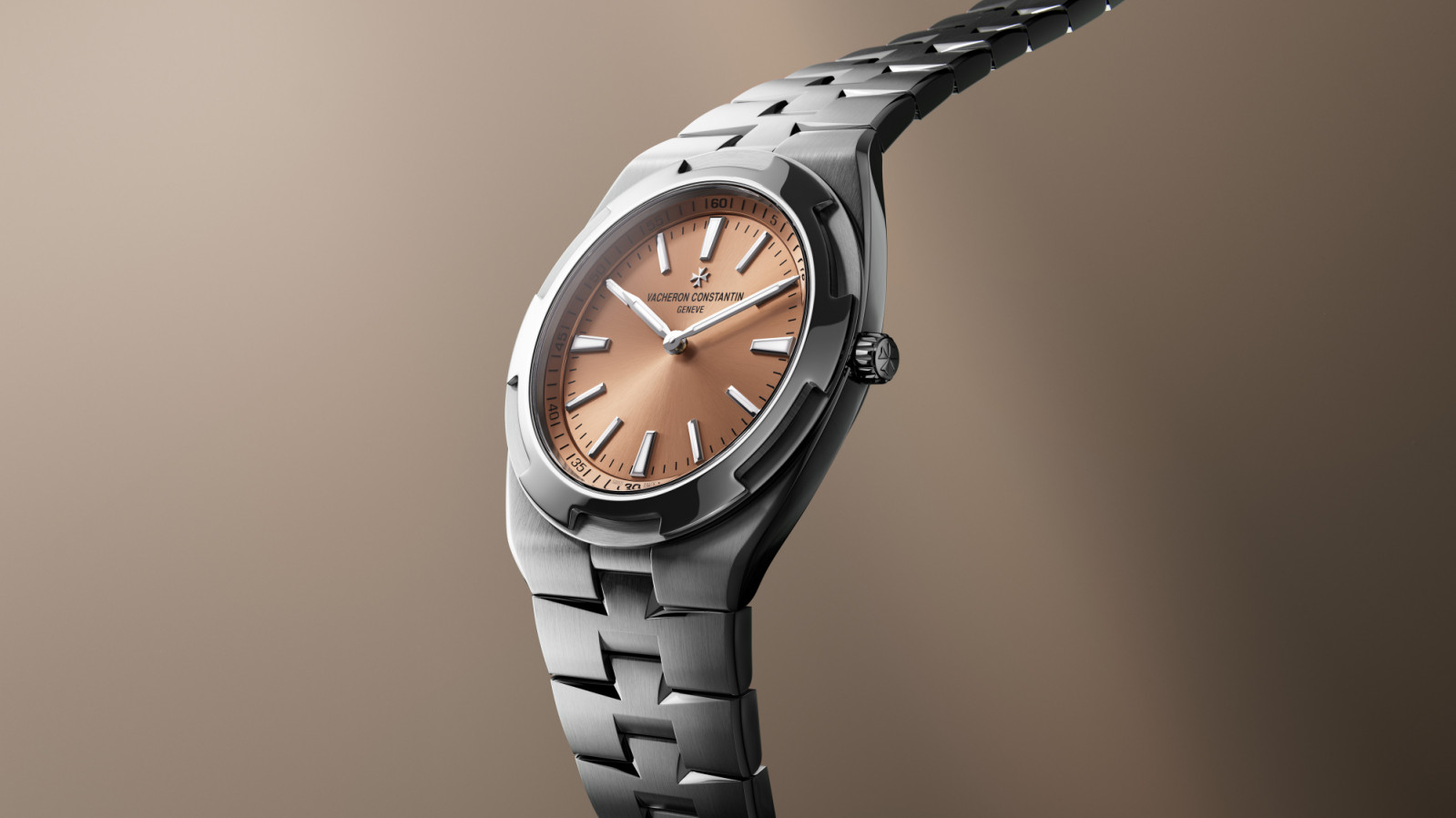

The salmon-lacquered dial has a sunburst satin finish at the centre and a velvet-finished outer track. The combination has a historical precedent, appearing in several of the maison’s 1940s models and again more recently in the Traditionnelle perpetual calendar chronograph from 2022. Hour markers and hands are in 18-karat white gold, with blue Super-LumiNova applied to markers and both hands.
The Overseas Self-Winding Ultra-Thin is a limited edition of 255 individually numbered pieces. It comes with three straps: the 950 platinum bracelet, a beige rubber strap and a dark beige alligator strap with a nubuck-touch finish, all interchangeable without tools.
If the Ultra-Thin is the headline release from Vacheron Constantin’s 2026 Overseas announcements, the Overseas Dual Time Cardinal Points collection is where the manufacture has been pursuing a rather more earthbound agenda. There are four new references, each named after a compass point, and each with a different dial colour chosen to evoke a corresponding landscape: white, referencing frozen terrain, for north; brown, suggesting plains and continents, for south; green, evoking dense forest, for west; and blue for east, where ocean and sky meet.
Above Close ups of the Vacheron Constantin Overseas Dual Time Cardinal Points in green (Photo: courtesy of Vacheron Constantin)
Above Close ups of the Vacheron Constantin Overseas Dual Time Cardinal Points in green (Photo: courtesy of Vacheron Constantin)
Close ups of the Vacheron Constantin Overseas Dual Time Cardinal Points in green (Photo: courtesy of Vacheron Constantin)
1 / 2

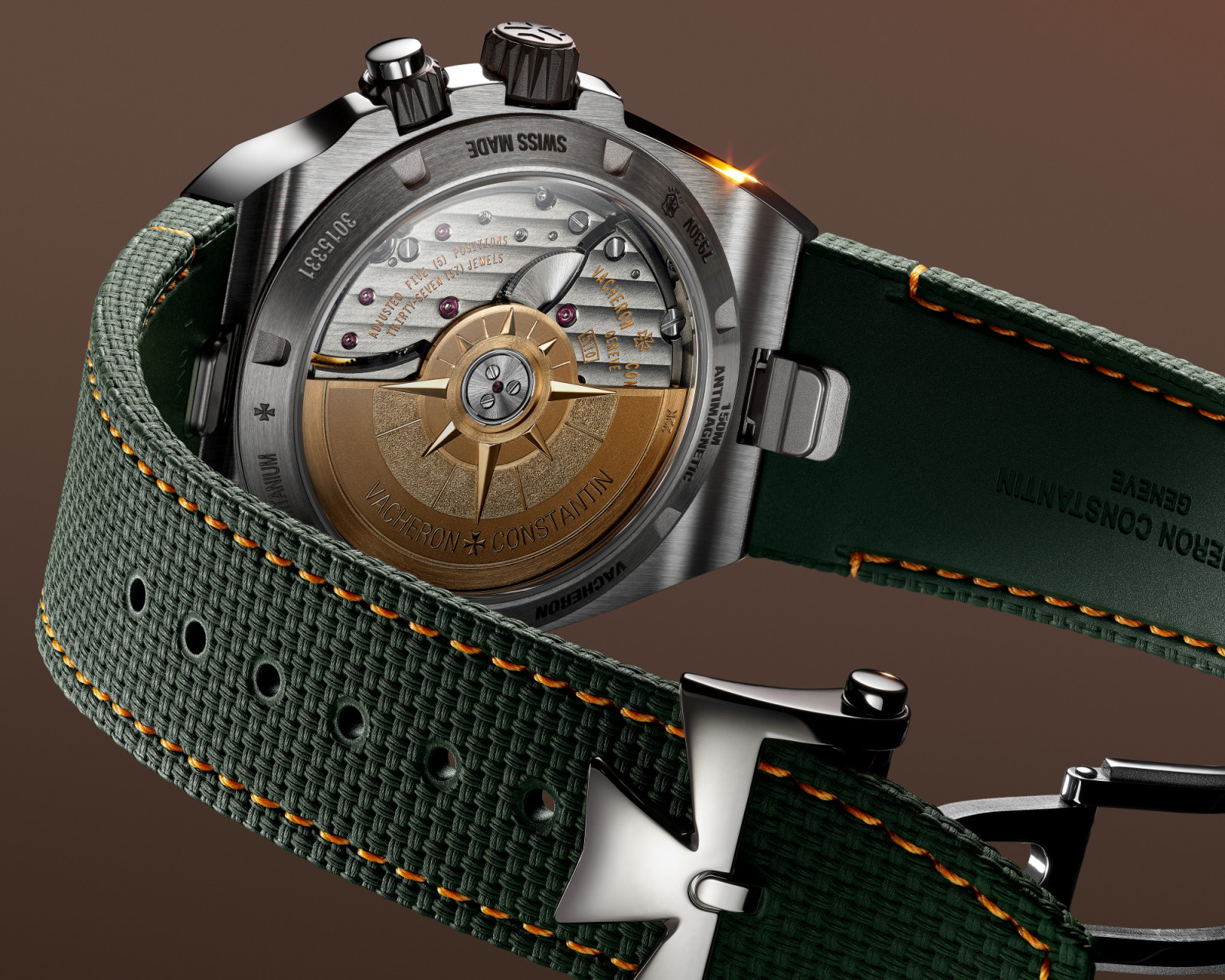

The Cardinal Points references are entirely in titanium: case at 41mm in diameter and 12mm thick, integrated bracelet, and folding clasp. The movement is the manufacture Calibre 5110 DT/3, a self-winding calibre displaying two time zones simultaneously alongside an am/pm indicator at nine o’clock and a date at six o’clock. The home time is shown by an orange, arrow-tipped hand, and the local time is adjustable via the crown, which turns in either direction. Power reserve is approximately 60 hours. The calibre contains 234 components and 37 jewels and beats at 4Hz, while the movement bridges carry a dark grey NAC treatment that ties the movement aesthetically to the titanium case above it. The winding rotor is 22-karat 3N yellow gold and carries the signature Overseas compass rose. Water resistance is down to approximately 150 metres.
The context behind these watches is of especial note. In 2019, Vacheron Constantin produced a single prototype Overseas Dual Time for photographer and mountaineer Cory Richards: a titanium-cased watch with a dark grey, grained dial that Richards wore during his attempt on a new route across the northeast face of Everest. In 2021, two limitededition Everest references followed: a Chronograph and a Dual Time, also in titanium and drawing directly from that prototype’s aesthetic. The Cardinal Points watches are the next stage: four production references, not limited editions, building on the same vocabulary but with a considerably broader palette.

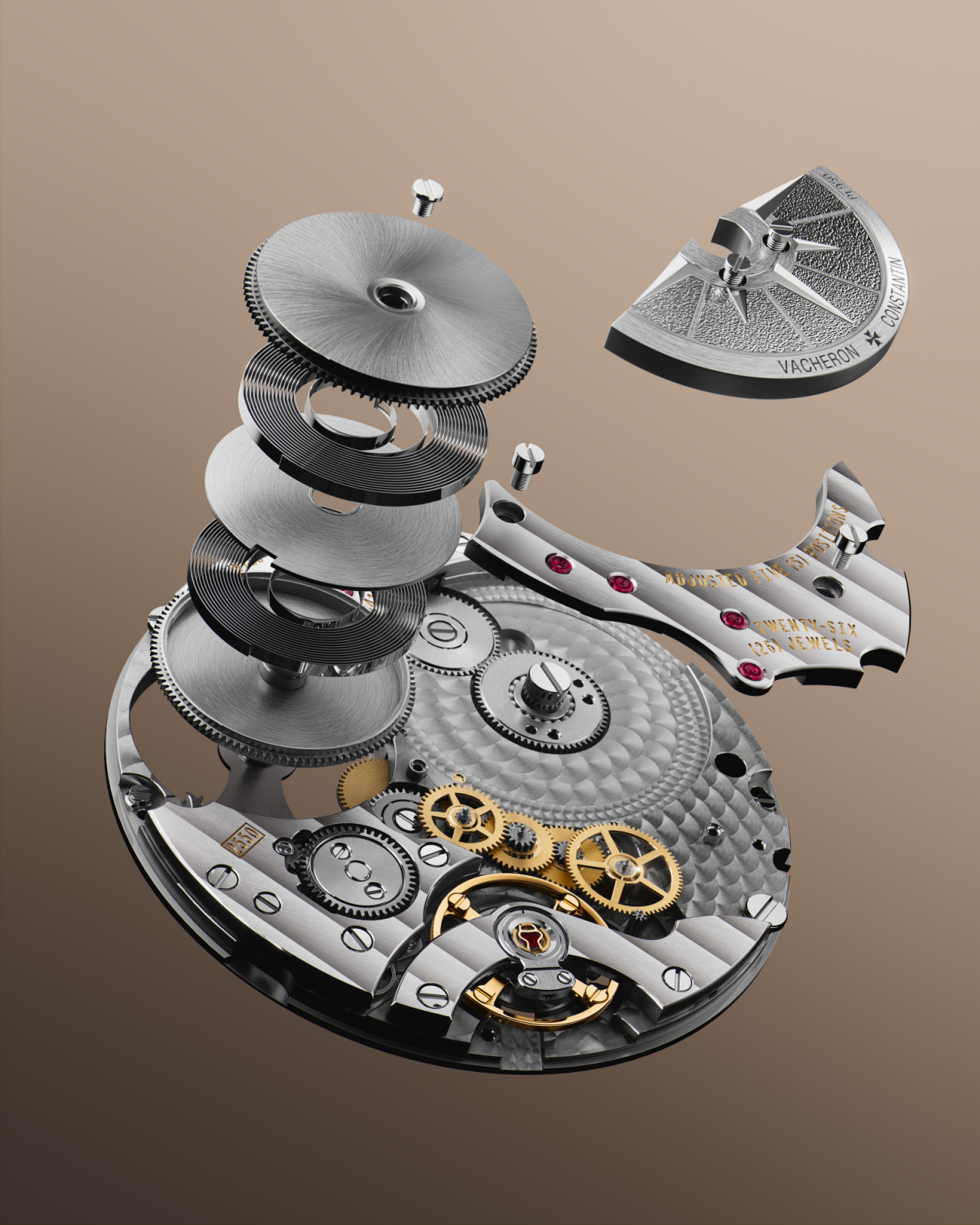

Above Calibre 2550 (Photo: courtesy of Vacheron Constantin)
Calibre 2550 (Photo: courtesy of Vacheron Constantin)
1 / 1

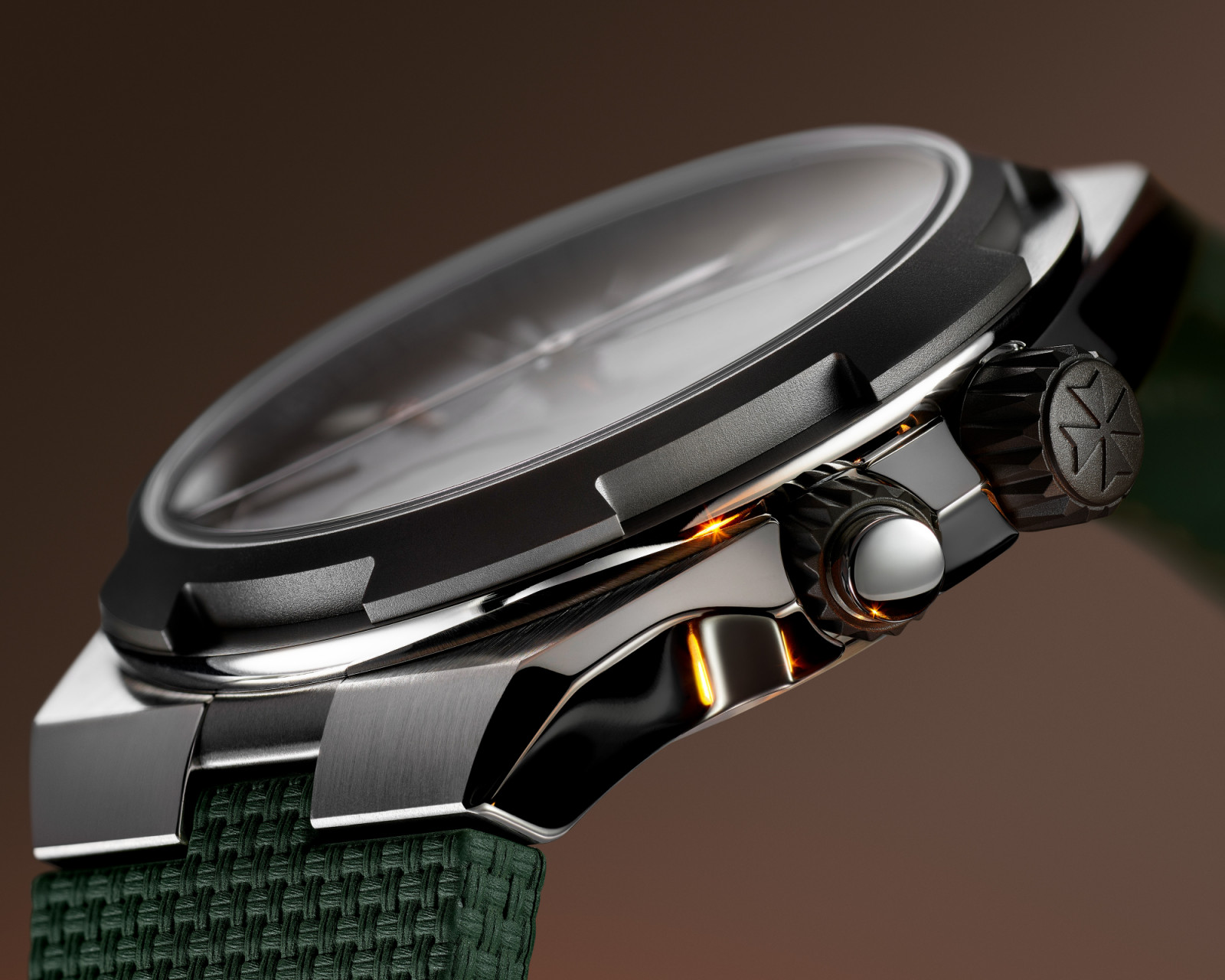

The dials reward attention. A grained finish at the centre reduces reflection while the date counter at six o’clock uses a snailed finish, a considered textural contrast at small scale. Two concentric rings surround the dial: an inner minutes track in circular satin finish and an outer seconds track in lacquer, with numerals marking every five seconds. The bezel, crown and pusher ring carry a matte anthracite grey finish that plays against the cutaway notches in the titanium bezel—the same notches that reference the Maltese Cross shape. The orange hands for the second time zone and am/pm function are the one element that cuts through the otherwise composed palette on every reference. Hour markers and primary hands are in 18-karat white gold with blue Super-LumiNova.
Each watch comes with the integrated titanium bracelet, incorporating the collection’s Easy- Fit adjustment system, plus two rubber straps: one in orange with a Maltese Cross-inspired texture and one matching the dial colour; all strap changes are tool-free. The Cardinal Points watches carry the Geneva Hallmark and are available exclusively through Vacheron Constantin boutiques.
Beyond the Overseas case shape and the interchangeable strap system, what connects the platinum Ultra-Thin collection and the four titanium Dual Time references is a technical precision that Vacheron Constantin has consistently brought to what is ostensibly a sports collection. The Ultra-Thin makes its argument through movement architecture; the Cardinal Points make theirs through materials and functions calibrated to actual use in demanding conditions. The Overseas has always been Vacheron Constantin’s proof that elegance and function are not a trade-off. In 2026, with 2.4mm on one wrist and 150 metres of water resistance on the other, that point is made rather emphatically.
